Red.

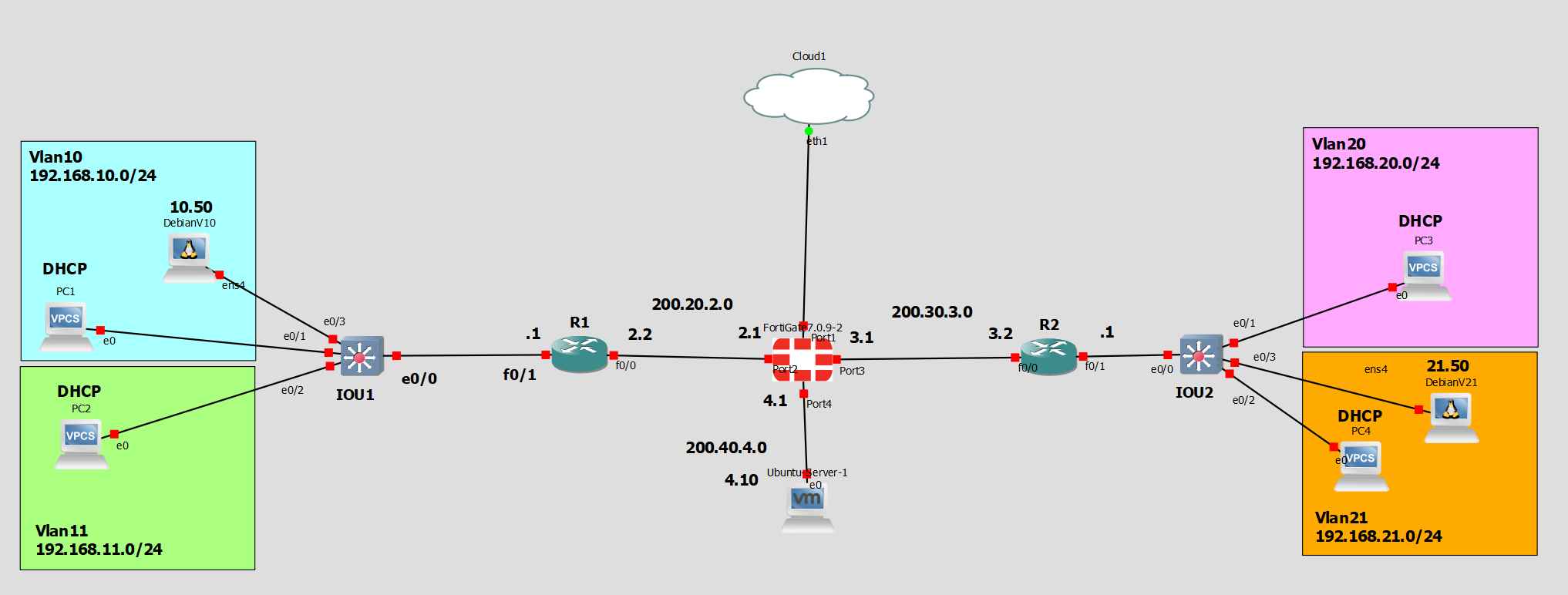

Topología de Red
Direccionamiento de Red
Routers
| Dispositivo | Interfaz | Dirección IP | Red | Destino |
|---|
| R1 | f0/1 | 192.168.10.1 /24 | 192.168.10.0 | IOU1 (VLAN 10/11) |
| R1 | f0/0 | 200.20.2.2 /24 | 200.20.2.0 | FortiGate Port2 |
| R2 | f0/1 | 192.168.20.1 /24 | 192.168.20.0 | IOU2 (VLAN 20/21) |
| R2 | f0/0 | 200.30.3.2 /24 | 200.30.3.0 | FortiGate Port3 |
Firewall FortiGate
| Puerto | Dirección IP | Red | Conexión |
|---|
| Port1 | DHCP (WAN) | — | Internet (Cloud1) |
| Port2 | 200.20.2.1 /24 | 200.20.2.0 | R1 |
| Port3 | 200.30.3.1 /24 | 200.30.3.0 | R2 |
| Port4 | 200.40.4.1 /24 | 200.40.4.0 | DMZ (Ubuntu) |
VLANs
| VLAN | Red | Dispositivos | Asignación IP |
|---|
| VLAN 10 | 192.168.10.0 /24 | PC1, DebianV10 | DHCP |
| VLAN 11 | 192.168.11.0 /24 | PC2 | DHCP |
| VLAN 20 | 192.168.20.0 /24 | PC3 | DHCP |
| VLAN 21 | 192.168.21.0 /24 | PC4, DebianV21 | DHCP |
DMZ
| Dispositivo | Interfaz | Dirección IP | Red |
|---|
| UbuntuServer-1 | e0 | 200.40.4.10 /24 | 200.40.4.0 |
